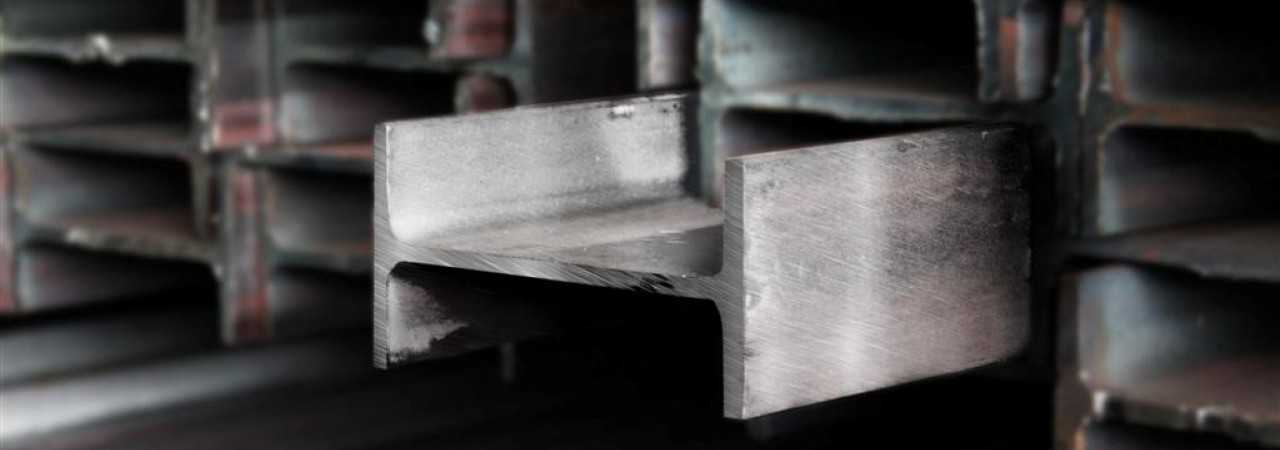

Wide Flange, konstruksi baja yang populer di lininya.
Sering disebut dengan W-Shape, adalah baja struktural di mana flensa memiliki ketebalan sam dari ujung hingga ke web. Jika dilihat dari bagian atas, terlihat seperti huruf ‘H’. Wide Flange berbeda dalam lebar web dan beratnya.
| Standard Sectional Dimension | Section | Unit Weight | Informative Reference | |||||||||
| Area | Geometrical | Radius Of | Modulus Of | |||||||||
| H x B | t1 | t2 | r | A | Moment Of Inertia | Gyration Of Area | Section | |||||
| mm | mm | mm | mm | cm2 | kg/m | Kg/12m | lx cm4 | ly cm4 | ix cm | iy cm | Zx cm3 | Zy cm3 |
| 150 x 75 | 5 | 7 | 8 | 17.85 | 14.00 | 168 | 666 | 49.5 | 6.11 | 1.66 | 88.8 | 13.2 |
| * 148 x 100 | 6 | 9 | 11 | 26.84 | 20.7 | - | 1,020 | 151 | 6.17 | 2.37 | 138 | 30.1 |
| 198 x 99 | 4.5 | 7 | 11 | 23.18 | 18.20 | 218 | 1,580 | 114 | 8.26 | 2.21 | 160 | 23.0 |
| 200 x 100 | 5.5 | 8 | 11 | 27.16 | 21.30 | 256 | 1,840 | 134 | 8.24 | 2.22 | 184 | 26.8 |
| * 194 x 150 | 6 | 9 | 8 | 38.11 | 30.6 | 367 | 2,630 | 507 | 8.30 | 3.65 | 271 | 67.6 |
| 248 x 124 | 5 | 8 | 12 | 32.68 | 25.70 | 308 | 3,540 | 255 | 10.4 | 2.79 | 285 | 41.1 |
| 3.29 | 481 | 67.79 | 12 | 37.66 | 29.60 | 355 | 4,050 | 294 | 10.4 | 2.79 | 324 | 47.0 |
| 298 x 149 | 5.5 | 8 | 13 | 40.80 | 32.0 | 384 | 6,320 | 442 | 12.4 | 3.29 | 424 | 59.3 |
| 300 x 150 | 6.5 | 9 | 13 | 52.68 | 36.70 | 440 | 7,210 | 508 | 12.4 | 3.29 | 481 | 67.7 |
| 346 x 174 | 6 | 9 | 13 | 52.68 | 41.40 | 497 | 11,100 | 792 | 14.5 | 3.88 | 641 | 91.0 |
| 350 x 175 | 7 | 11 | 14 | 72.16 | 49.60 | 595 | 13,600 | 984 | 14.7 | 3.95 | 775 | 112 |
| 396 x 199 | 7 | 11 | 16 | 84.1 | 56.60 | 679 | 20,000 | 1,450 | 16.7 | 4.48 | 1,010 | 145 |
| 400 x 200 | 8 | 13 | 16 | 96.8 | 66.0 | 792 | 23,700 | 1,740 | 16.8 | 4.54 | 1,190 | 174 |
| 450 x 200 | 9 | 14 | 8 | 96.8 | 76.0 | 912 | 33,500 | 1,870 | 18.6 | 4.40 | 1,490 | 187 |
| 500 x 200 | 10 | 16 | 20 | 114.2 | 89.6 | 1075 | 47,800 | 2,140 | 20.5 | 4.43 | 1,910 | 214 |
| 600 x 200 | 11 | 17 | 22 | 134.4 | 106 | 1272 | 77,600 | 2,280 | 24.0 | 4.12 | 2,590 | 228 |
| 588 x 300 | 12 | 20 | 28 | 192.5 | 151 | 1812 | 181,000 | 9,020 | 24.80 | 6.85 | 4,020 | 601 |
NOTE : * Non standard sizes are available upon request and subject to minimum quantity
