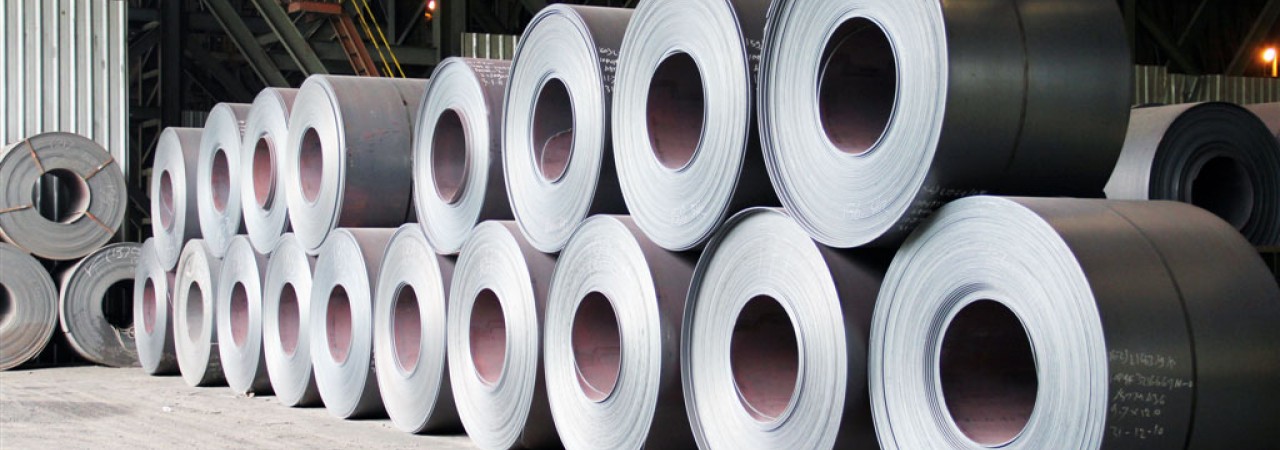

Hot Roll Coil

Hot Roll Coil, lempengan baja dengan kualitas No. 1.

Lempengan baja Hot Rolled dan Cold Rolled milik kami bisa dibentuk menjadi serta memiliki kualitas permukaan yang baik, lebih tipis, dan juga dengan ukuran yang tepat. Selain itu, Hot Rolled kami memiliki daya tahan yang kuat dan pengerjaan hasil akhir yang terbaik.

Specifi
cation		 Grade Product Thickness   Tensile Test Bend Test Impact
Test Average
Temp. (Joule)		 Application Remarks
    Thickness
(mm)		 Range (mm) YS Min.
(N/mm2)		 UTS
(N/mm2)		 E min (%)
on 50.8 mm
JIS G 3131 SPHC 4 - 16 1.6 <2 - 270 min 29 (50mm) Bending
180o
0.5 x t		 - Commercial
Quality
Drawing
Purpose		 For
the width
of 1524mm
(5') the min.
thickness
is 5mm
2 <2.5 29 (50mm)
2.5 <3.2 29 (50mm)
3.2 <4 31 (50mm)
>4 31 (50mm)
SPHD 4 - 16 2 <2.5 - 270 min 33 (50mm)     Drawing
Quality
Cold
Rollable
2.5 <3.2 35 (50mm)
3.2 <4 37 (50mm)
>4 39 (50mm)
JIS G 3132 SPHT - 1 4 - 16 1.6 <3 - 275 min 32 (50mm) Bending
180o
Over 3mm
0.5 x t		 - Welded
Steel Pipes
& Tubes
3 <6 35 (50mm)
6 <13 37 (50mm)
SPHT - 2 4 - 16 1.6 <3 - 343 min 27 (50mm) Bending
180o
Over 3mm
1.5 x t		 - Welded
Steel Pipes
& Tubes
3 <6 30 (50mm)
6 <13 32 (50mm)
SPHT - 3 4 - 16 1.6 <3 - 412 min 22 (50mm) Bending
180o
Over 3mm
2.0 x t		 - Welded
Steel Pipes
& Tubes
3 <6 25 (50mm)
6 <13 27 (50mm)
JIS G 3106 SS 400 4 - 19 2 <3.2 250 400 21 (50mm) Bending
180o
0.5 x t		 -

For General
Structure
3.2 <5 21 (50mm)
4 <6.3 17 (50mm)
>8 17 (50mm)
JIS
G 3116		 SG 255   1.6 - 6 255 400 28 (50mm) 180o 1.0 x t - For LPG
Cylinder
JIS G 3113 SAPH 400 (41) 4 - 14 2.5 <3.15 250 402 34 (50mm) Bending
180o
1.0 x t		 - Structure
For
Automobiles
3.15 <4 35 (50mm)
4 <6.3 36 (50mm)
>6.3 235 24 (50mm)
SAPH 440 (45) 4 - 14 2.5 <3.15 305 402 32 (50mm) Bending
180o
1.0 x t		 - Structure
For
Automobiles
3.15 <4 35 (50mm)
4 <6 36 (50mm)
>6 <8 295 36 (200mm)
>8 <14 275 24 (200mm)
ASTM
A 283		 C 6 - 16 - 205 380 - 515 20 (200mm)     For Storage
Tank of Low
Temp. Use
ASTM
A 285		 C 6 - 16 - 205 380 - 515 20 (200mm)     For Storage
Tank of Low
Temp. Use
ASTM
A 36		 - 4 - 16 - 250 400 - 550 20 (200mm)     For General
Structural
Application
A. B. S. A up to 12 - 235 400 - 520 22 (5.65VSo)     For Use In Ship
Construction
B. K. I. A up to 12 - 235 400 - 520 22 (5.65VSo)     For Use In Ship
Construction
L. R. A up to 12 - 235 400 - 520 22 (5.65VSo)     For Use In Ship
Construction
ASTM A 572 42 5 - 16 - 290 415 min 20 (200mm) - - For Welded
Construction
With Improved
Toughness
50 5 - 16 - 345 450 min 18 (200mm) - -
55 5 - 16 - 380 485 min 17 (200mm) - -
ASTM
A 516		 70 5 - 16 - 260 485 - 620 17 (200mm) - - For Pressure
Vessel
Carbon Steel For
Moderate
& Lower Temp.
Service With
Improved Notch
Toughness
DIN 17100 ST 52.3 5 - 16 <16 355 510 - 630 22 (200mm) 2XT/180o 0o / 27
BS 4360 50 A 5 - 16 <16 355 490 - 640 18 (200mm) - - Superior
Weldability
50 B 5 - 16 <16 355 490 - 640 18 (200mm) - -
50 C 5 - 16 <16 355 490 - 640 18 (200mm) - 0oC (27)
50 D 5 - 16 <16 355 490 - 640 18 (200mm) - -20oC (27)
EN 10025 S 355 JR 5 - 16 <16 355 490 - 630 22 (5.65VSo) - -
S 355 JO 5 - 16 <16 355 490 - 630 22 (5.65VSo) - 0oC (27)
S 355 J2G3 5 - 16 <16 355 490 - 630 22 (5.65VSo) - -20oC (27)
JIS G 3106 SM 490 A 6 - 16 <16 325 490 - 610 17 (200mm) -
SM 490 B 6 - 16 <16 325 490 - 610 17 (200mm) - 0oC(27)
SM 490 C 6 - 16 <16 325 490 - 610 17 (200mm) - 0oC / 47
SM 490 YA 6 - 16 <16 365 490 - 610 15 (200mm) -
SM 490 YB 6 - 16 <16 365 490 - 610 15 (200mm) - 0oC (27)
AS 3678 350 6 - 12 >8 <12 360 450 min 18 (200mm) - -
>8 <16 350
250 4 - 16 >8 <12 260 410 min 20 (200mm) - -
>8 <16 250
BS 4360 40 A 4 - 16 <16 235 340 - 500 22
(200mm)		 -   For
General
Structure
Purpose		 For
the width
of 1524mm
(5') the min.
thickness
is 5mm
40 B 4 - 16 <16 235 340 - 500 22 (200mm) -
40 C 4 - 16 <16 235 340 - 500 22 (200mm) - 0oC (27)
40 D 4 - 16 <16 235 340 - 500 22 (200mm) -
43 A 4 - 16 <16 275 430 - 580 20 (200mm) - -20o (27)
43 B 4 - 16 <16 275 430 - 580 20 (200mm) -
43 C 4 - 16 <16 275 430 - 580 20 (200mm) - 0oC (27)
43 D 4 - 16 <16 275 430 - 580 20 (200mm) - -20oC (27)
DIN 17100 ST 37.2 4 - 19 <16 235 340 - 470 22 (200mm) 1XT/180o 20o / 27 For General Structure Purpose
>16 <40 225 21
(200mm)
>40 225 20
(200mm)
EN 10025 S 235 JRG2 4 - 19 <16 235 340 - 470 26
(5.65VSo)		   20o / 27
(as per order)		 For
General
Structure
Purpose
>16 <40 225 26
(5.65VSo)
>40 <63 215 25
(5.65VSo)
>63 <80 215 24
(5.65VSo)
S 235 JR
(only
Available
For Thick
= 25mm)		 4 - 19 <16 235 340 - 470 26 (5.65VSo) - 20o / 27
(as per order)
>16 <40 225 26 (5.65VSo)
>40 <63 - 25 (5.65VSo)
>63 <80 - 24 (5.65VSo)
S 235 JO 4 - 19 <16 235 340 - 470 26 (5.65VSo) - 0oC (27)
>16 <40 225 26 (5.65VSo)
>40 <63 215 25 (5.65VSo)
>63 <80 215 24 (5.65VSo)
S 235 J2G3 4 - 19 <16 235 340 - 470 26 (5.65VSo) - -20oC (27)
>16 <40 225 26 (5.65VSo)
>40 <63 215 25 (5.65VSo)
>63 <80 215 24 (5.65VSo)
S 275 JR 4 - 19 <16 275 410 - 560 26 (5.65VSo) - 20o / 27
(as per order)
>16 <40 265 26 (5.65VSo)
>40 <63 255 25 (5.65VSo)
>63 <80 245 24 (5.65VSo)
S 275 JO 4 - 19 <16 275 410 - 560 26 (5.65VSo) - 0oC (27)
>16 <40 265 26 (5.65VSo)
>40 <63 255 25 (5.65VSo)
>63 <80 245 24 (5.65VSo)
S 275 J2G3 4 - 19 <16 275 410 - 560 26 (5.65VSo) - -20oC (27)
>16 <40 265 26 (5.65VSo)
>40 <63 255 25 (5.65VSo)
>63 <80 245 24 (5.65VSo)
